Efficient Thickener

Efficient Thickener
Introduction
Produced by introducing American technique
Capacity
5-1400t/d
Product improvement
New mechanical structure, strengthening the flocculation of solid particleand supplying flocculent adding system

Advantages

 Efficient thickener

  • Adding the flocculants to increased sedimentation particle size, thus speeding up the sedimentation velocity.

  • Adding the degassing tank to prevent solid particles attached to the bubbles

  • Setting material receiving plate and cylinder moving down, the feeding evenly and steadily falling, effectively prevent the occurrence of the splashing.

  • Unit processing capacity is improved by 4 ~ 9 times,and energy saving 30%.

Description

 Efficient thickener

High efficiency thickener is not simple equipment, but with a new type of dewatering equipment mud layer filtration characteristics. Its main feature is to add a certain amount in the flocculants to be concentrated pulp, the pulp of mineral particles form flocks, accelerate the sedimentation rate, and improve the efficiency of the concentrate

Work Principle

 Efficient thickener



This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

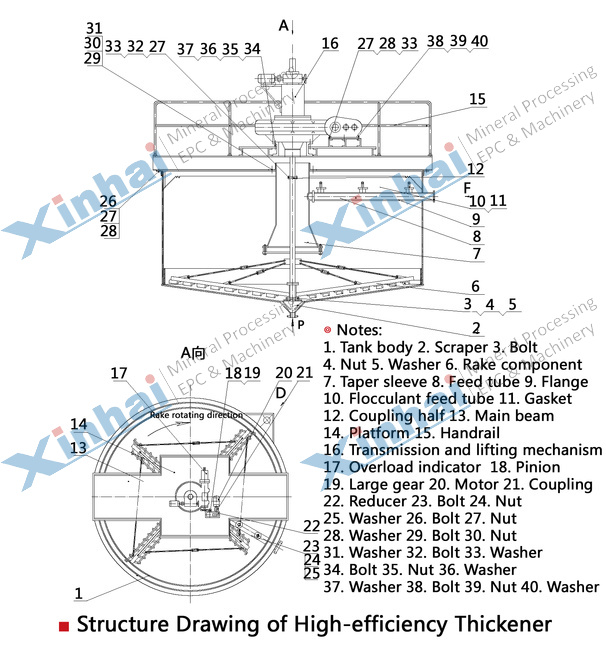

Product structure

 Efficient Thickener

Application

 Efficient thickener

Efficient thickener is widely applied in metallurgy, mines, coal, chemical industry, building materials, environmental protection and other departments, which has significance for improvement of water returning utilization rate and underflow conveying concentration.

Technical Parameters

Model Inner Diameter of Tank (mm) Tank
Height
(mm)
Subsidence Area (m2) Rabble
Rotating
Speed
(r/min)
Lifting Height of the Rabble (mm) Driving
Motor
Model
Driving
Motor
Power
(kW)
Lifting
Motor
Model
Lifting
Motor
Power
(kW)
Steel Tank Weight (kg) Weight
(kg)
GX-3.6 3600 1700 10.2 1.1 200 Y100L-6 1.5 Y100L-6 1.5 2829 6650
GX-5.18 5182 2134 21 0.4 300 Y132S-6 3 PZ0.8AB 0.8 5342 10460
GX-6 6000 2500 28.3 0.8 300 Y132M1-6 4 Y132S-8 2.2 6506 10573
GX-7.5 7500 2800 44.1 0.427 300 Y132M2-6 5.5 Y132S-8 2.2 10258 17320
GX-9 9000 2800 63.6 0.427 300 Y132M2-6 5.5 Y132S-8 2.2 15980 23680
GX-12 12000 3600 110 0.35 300 Y132M-4 7.5 Y100L1-4 2.2 25589 42756
GX-15 15000 4000 177 0.15 300 YCT200-4B 7.5 Y112M-6 2.2 36050 59000
GX-18 18000 4400 254 0.13 400 YCT200-4B 7.5 YTC752A-44 5.5 52485 73296
GX-20 20000 4400 314 0.13 400 YCT200-4B 7.5 YTC752A-44 5.5 59365 76020
