Disc Feeder

Disc Feeder
Product Introduction
A traditional continuous feeding equipment for powder material
Capacity
0~88.4t/h
Product Improvement
Install speed adjustment motor according to need; control feeding volume by adjusting the rotation speed of disc

Advantages

  • Stable working and easy operation

  • Wide application, energy saving and efficient

  • Large bearing capacity and stable operation

  • Simple structure; even feeding; convenient maintenance; the best choice for feeding process of powder materials

Work Principle

Bulky materials entering into the cylinder from the hopper accumulate by itself weight on the disk. The natural angle of material is controlled on the disk by adjusting the gap between the sleeve and disc. When the disk rotates, the materials are scraped into accepted hopper by unloading knife, so with the continuous rotation of the disk, the materials are fed evenly. Adjust the gap between the unloading knife and the disk to control the feeding volume.

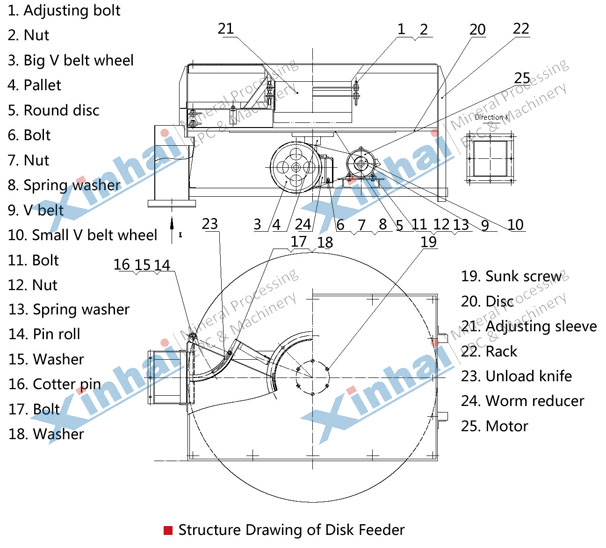

Product Structure

Disc feeder

Disc feeder consists of driving device, main body, metering belt conveyer and metering device. Feeder and belt conveyor is driven by the same driving device. The electromagnetic clutch device of this drive controls the starting& stopping and function conversion of feeder. Speed of metering belt conveyor is less than 1m/s.

Product Application

It is applicable to feed non viscous material, but not suitable for powder materials with good flow ability. The suitable feeding material: powder, granular or small bulk materials such as coal powder, cement, clinker, limestone, clay, gypsum, slag etc.

Technical Parameters

Type Model Disk Diameter (mm) Rotating Speed of Disk (r/min) Max. Feed Size (mm) Feed Capacity (t/h) Motor Model Motor Power
(kW)
Weight
(kg)
  YG300 300 10. 0  20 0~ 1. 8 Y80L- 4 0. 55 115
  YG400 400 10. 7 0~ 2. 6  Y90L- 6   1. 1  120
  YG500 500 0~ 3. 3 124
Close YG600 600 10. 0 0~5. 0 130
Hanged YG800 800 9 30 0~8. 0 Y80L- 4 0.55 195
  YG1000 1000 9 30 0~ 12 Y90L- 4 1. 5 263
  YG1500 1500 7 40 0~ 22 Y132M2-6 5. 5 755
  YG2000 2000 5 50 0〜80 Y160L-6 11 2517
  DK600 600 7. 53 25 1. 8~ 3. 9 Y90L- 6 1. 1 410
  DK800 800 7. 53 30 3. 5~ 7. 6 600
  DK1000 1000 7. 50 40 1.8〜16.7 Y100L- 6 1. 5 725
Open
Hanged
DK1300 1300 6. 5 50 4. 3~27. 9 Y132S- 6 3 846
DK1600 1600 6 60 7.03~48.6 Y132M1- 6 4 1980
  DK1800 1800 5 70 9.26~60 Y132M2- 6 5.5 3070
  DK2000 2000 80 13.6~88.4 Y132M2- 6 3260
