Belt Feeder

Belt Feeder
Product Introduction
A belt feeder with heave pressure bearing
Capacity
10~450t/h
Product Improvement
Speed adjustment motor, adjusting the feeding volume by changing belt speed

Advantages

It has two methods to adjust the production capacity: adjusting the rotating speed of the AC motor; adjusting the depth of the adjusting gate

  • Low power consumption, convenient operation

  • convenient installation, large conveying capacity

  • Low noise

Work Principle

The hopper feeds minerals on the belt. With the AC motor revolving, belt slowly moves toward and carries minerals to next production process to achieve continuous feeding.

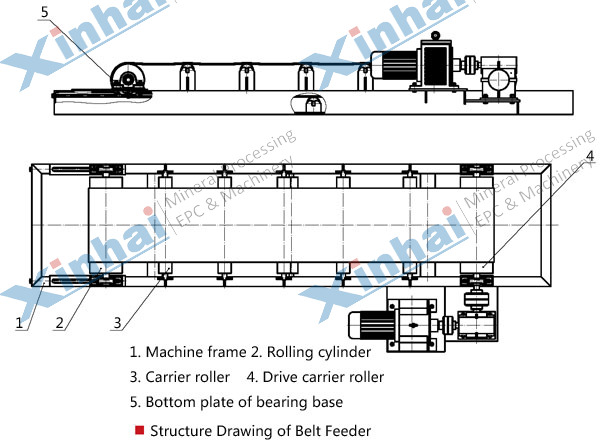

Product Structure

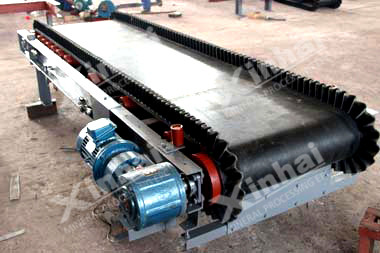

Belt feeder

Belt feeder is mainly composed of machine frame, conveying belt, belt roller, tensioning device, and transmission device etc. The fuselage connected by the high quality steel plates. Frame is provided with belt roller, support roller, etc..It has two ways to drive by deceleration motor or electric drum.

Product Application

Belt feeder is widely used in metallurgy, mineral processing, building materials, coal, hydropower and other departments for transporting 0.5~2.5t bulk density materials. According to the technological requirements, it can be used for a single delivery, and can also company with other equipment to form a horizontal or inclined conveying system to meet the needs of different production line.

Technical Parameters

Model Belt Width (mm) Center Distance of Head and Tail Wheel or Drum Wheel (mm) Diameter of Head and Tail Wheel (mm) Feed Capacity (t/h) Feed Size (mm) Motor Model Motor
Power
(kW)
Weight
(kg)
500X1000 500 1000 219 10~100 0~50 YCT112- 4B 0.75 266
500X1300 1300 10~100 0~50 YCT160 -4A 2.2 345
500X1500 1500 10~100 0~50 Y2.2-1.0-50-32 2.2 767
500X2000 2000 10~100 0~50 Y2.2-1.0-50-32 2.2 609.4
500X2800 2800 10~100 0~50 YCT160- 4A 2.2 670
500 X3000 3000 10~100 0~50 YCT160 -4A 2.2 697
500 X4000 4000 10~100 0~50 YCT160- 4A 2.2 736
650X1500 650 1500 10~100 0~50 YCT160- 4A 2.2 610
650X2600 650 2600 10~100 0~50 YCT160- 4A 2.2 636
650X4000 650 4000 10~100 0~50 YCT160- 4A 2.2 893
800 X2000 800 2000 15~150 0~80 YCT160- 4A 2.2 721
800 X3000 800 3000 15~150 0~80 YCT200- 4B 7.5 857.3
800 X4000 800 4000 15~150 0~80 YCT200- 4B 7.5 1012
800X4500 800 4500 400 15~150 0~80 YCT160- 4A 2.2 1200
1000X2000 1000 2000 200~450 0~80 YCT160- 4B 3 1549
1000X2500 2500 200~450 0 ~100 YCT160- 4B 3 2105
1000 X6000 6000 200~450 0 ~100 YCT225- 4A 11 5214
