Peripheral Transmission Thickener

Peripheral Transmission Thickener
Introduction
Peripheral transmission thickener has two kinds, peripheral roller transmission and peripheral gear transmission
Capacity
87~3000t/d
Product Improvement
Single row cross column rotary support or single row four point contact ball rotary support, collector device with good insulation, exposed rotary parts with light shield

Advantages

 Peripheral transmission thickener

  • Unique bridge design, excellent rigid strength and strong overload capacity

  • Peripheral roller transmission, low energy consumption, stable and reliable operation

  • Simple operation, convenient maintenance and remote control

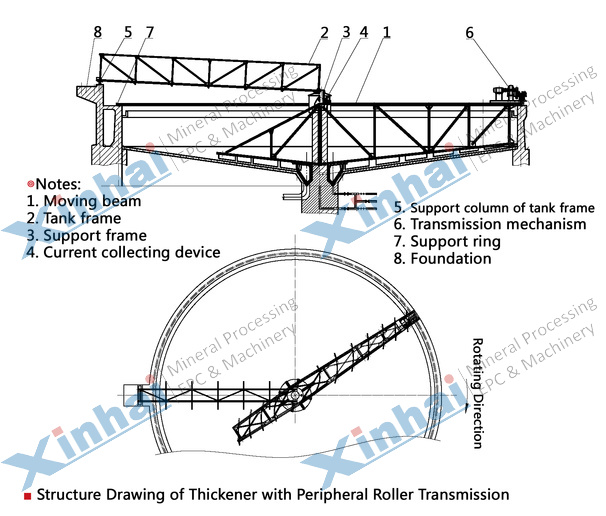

Product Structure

 Peripheral transmission thickener

 Peripheral transmission thickener

This thickener consists of round thickener and harrow scraping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

Product Application

Peripheral transmission thickener

The machine is suitable for dealing with large capacity and light density products. Mainly used for condensing concentrate and dewatering the tailings. It can be also used for condensing and cleaning the pulp with solid particles in coal, chemical, building materials and sewage treatment system.

Technical Parameters


Peripheral Roller Transmission Thickener


Model Thickening Tank Diameter (mm) Thickening Tank Center Depth (mm) Capacity
(t/d)
Subsidence Area (m2) Motor Model Motor Power
(kW)
Weight
(kg)
NG-15 15000 3612 88 〜390 177 Y132M2-6 5.5 11702
NG-18 18000 3500 127〜560 255 Y132M2-6 5.5 9718
NG-24 24000 3400 226〜1000 452 Y160M-6 7.5 24000
NG-30 30000 3940 353〜1570 707 Y160M-6 7.5 31000
NG-45 45000 5060 790〜2400 1590 Y160L-6 11 50640
NG-53 53000 5070 1000〜3400 2202 Y160L-6 11 60910


Peripheral Gear Transmission Thickener


Model Thickening Tank Diameter (mm) Thickening Tank Center Depth (mm) Capacity (t/d) Subsidence Area (m2) Motor Model Motor Power
(kW)
Weight
(kg)
NT-15 15000 3500 88~390 177 Y132M2-6 5.5 11702
NT-18 18000 3700 127~560 255 Y132M2-6 5.5 12120
NT-24 24000 3400 226~1000 452 Y160L-8 7.5 28270
NT-30 30000 3940 353~1570 707 Y160M-6 7.5 31000
NT-45 45000 5025 790~2400 1590 Y160L-6 11 58640
NT-53 53000 5070 1000~3400 1964 Y160L-6 11 69410
