Efficient Improved Thickener

Efficient Improved Thickener
Introduction
A new efficient thickener independently developed by Xinhai
Capacity
5-1400t/d
Product improvement
After improvement, the capacity becomes larger, overflow with low turbidity and discharge with high concentration

Advantages

 Efficient improved thickener

  • Out overflow instead of inner overflow increases the sedimentation area and not easy to block

  • Oblique feeding instead of horizontal feeding solves the blockage problem

  • A tranquil flow device reduces material flow rate, so that the overflow becomes more uniform with lower turbidity.

3D Exploded Video

Every single part and working principles of Efficient Improved Thickener are showed in Xinhai 3D video, which is really convenient for you to see the structure and working principles of those large equipment.

Work Principle

 Efficient improved thickener

The vertical axis rotates driven by motor, and pulp by feeding device flows into the tank center feed mixing barrel.Solid material in the bottom of the tank by the scraper moves out of center; clarified overflow through the tranquil flow device flows out from the ring external overflow .

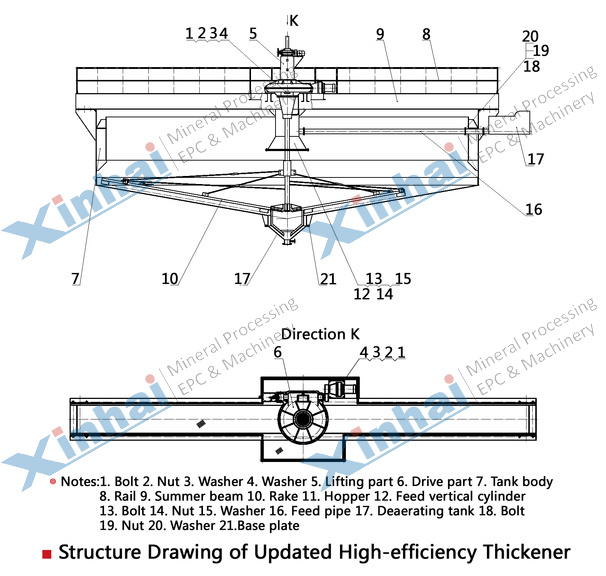

Product Structure

 Efficient improved thickener

Product Separation

 Efficient improved thickener

Product Application

Efficient improved thickener

It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.

Technical Parameters

Model Tank Diameter (mm) Tank Depth (mm) Subsidence Area (m2) Capacity
(t/d)
Motor Model Motor Power
(kW)
Steel Tank Weight (kg) Weight
(kg)
NZSG-2.5 2500 1850 4.9 5 ~22.4 Y90L-6 1.1 1000 2225
NZSG-3A 3000 1800 7 5 ~23.3 Y100L-6 1.5 1664 3168
NZSG-3 3600 1800 10.2 5 ~28.5 Y100L-6 1.5 2097 3680
NZSG-5 5000 2956 16 16 ~90 Y90L-4 1.5 5160 8031
NZSG-6 6000 2956 28.3 98 Y90L-4 1.5 5769 9200
NZSG-7 7000 3000 38.5 140 Y112M-6 2.2 8800 13862
NZSG-8 8000 3318 50.2 185 Y132S-6 3 12966 19158
NZSG-9 9000 3376 63 210 Y132S-6 3 15418 21733
NZSG-12 12000 3600 113 370 Y132S-6 3 25589 34823
NZSG-15 15000 3600 176 580 Y132S-4 5.5 35800 54315
NZSG-18 18000 4400 255 960 YCT200-4B 7.5 52485 73588
NZSG-20 20000 4400 315 1400 YCT200-4B 7.5 59365 76312

Related Articles



Related Products

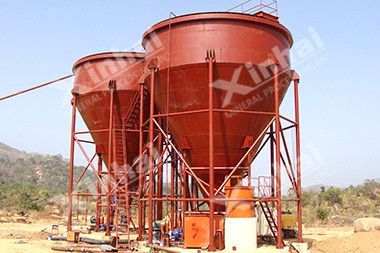

Hydraulic Motor Driving Center Thickener | Tilted Plate Thickener | Efficient Deep Cone Thickener |
