Round Vibrating Screen(YA)

Round Vibrating Screen(YA)
Product Introduction
A kind of advanced vibrating screen with circular motion
Capacity
80~1700t/h
Product Improvement
Ring groove rivets connection, plate type screen box, advanced structure, strong and durable
Vibration exciter with eccentric shaft and eccentric block, high screening efficiency, large capacity

Advantages

 Round vibrating screen (YA)

  • Screen mesh is made of wear-resistant rubber with long service life

  • Screen frame with high strength

  • Large clearance bearings operating with low temperature lift

  • Reasonable mechanical structure, low noise and high screening efficiency

  • Ring groove rivets connection, advanced structure, strong and durable

  • Large capacity, strong versatility of components and convenient repair

Classification of screen mesh

 Round vibrating screen(YA)

Screen mesh is main wearing parts. According to the materials and requirement of clients, there are manganese steel weaving meshes, punching screens and rubber screen plates with single or double layers.

According to the loading, wear-resistant screen mesh of Xinhai round vibrating screen is divided into light screen mesh (HD60 rubber), medium screen mesh (HD 70 rubber), heavy screen mesh (HDS rubber)

Product Description

Round vibrating screen (YA)

Round vibrating screenadopts eccentric shaft vibration exciter and eccentric block to adjust amplitude. The vibrator installed on the sideboard of screen box forces screen box to vibrate by the driving of motor. The sideboard of vibrating screen is made of high quality steel plate. Connect sideboards, beams, and the exciter base by high strength bolts or ring groove rivet. Vibrating screen adopts seat installation, and screen angle can be adjusted by changing the height of spring support.

The motor of round vibrating screen are installed on the right side of screen box, and can also be installed on the left side of screen box. If no special requirements, the motor is installed on the right side.

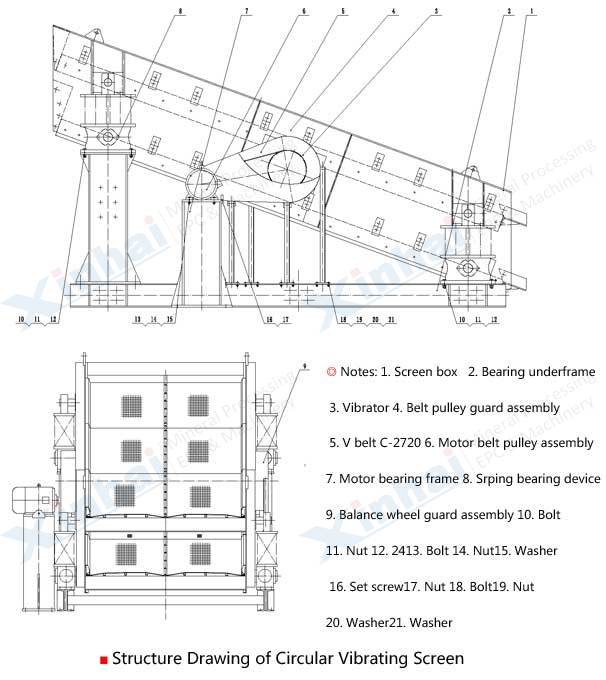

Product Structure

Round Vibrating Screen

Product Separation

Round Vibrating Screen

Application

 Round vibrating screen(YA)

Round vibrating screen is applied in quarry for screening sandstone or for product classification of coal, mine, construction materials, electric power and chemical industry.


Technical Parameters

Model Screen Surface Max. Feed Size Capacity (t/h) Motor Weight (kg)
Area (m2) Dip Angle (° ) Mesh Size (mm) (mm) Model Power (kW)
YA1236 4.3 20 6~50 200 80~240 Y160M-4 11 4905
2YA1236 80~240 Y160M-4 5311
YA1530 4.5 80~240 Y160M-4 4675
YA1536 5.4 100~350 Y160M-4 5137
2YA1536 400 100~350 Y160L-4 15 5624
YAH1536 30~150 160~650 Y160M-4 11 5621
2YAH1536 30~150; 6~50 160~650 Y160L-4 15 6045
YA1542 6.5 6~50 200 110~385 Y160M-4 11 5515
2YA1542 6~50 110~385 Y160L-4 15 6098
YA1548 7.2 6~50 120~420 Y160L-4 5918
2YA1548 6~50 120~420 Y160L-4 6321
YAH1548 7.2 30~150 400 200~780 Y160L-4 6842
2YAH1548 7.2 30~150 ; 6~50 200~780 Y160L-4 7404
YA1836 6.5 30~150 200 140~220 Y160M-4 11 5205
2YA1836 6.5 30~150 140~220 Y160L-4 15 5946
YAH1836 6.5 30~150 400 220~910 Y160M-4 11 5900
2YAH1836 6.5 30~150; 6~50 220~910 Y160L-4 15 6353
YA1842 7.6 6~150 200 140~490 Y160L-4 15 5829
2YA1842 7.6 6 ~150 140~490 Y160L-4 15 6437
YAH1842 7.6 30~150 400 450~800 Y160L-4 15 6352
2YAH1842 7.6 30~150 ; 6~50 450~800 Y160L-4 15 7037
YA1848 8.6 20 6~50 200 150~525 Y160L-4 15 6289
2YA1848 8.6 200 150~525 Y160L-4 15 6624
YAH1848 8.6 30~150 400 250~1000 Y160L-4 15 7122
2YAH1848 8.6 30~150 ; 6~50 400 250~1000 Y160L-4 15 7740
YA2148 10 6~50 200 180~630 Y180M-4 18.5 9033
2YA2148 10 6~50 200 180~630 Y180L-4 22 10532
YAH2148 10 13~200 400 270~1200 Y180M-4 18.5 10430
2YAH2148 10 30~150 ; 6~50 400 270~1200 Y180L-4 22 11190
YA2160 12.6 6~80 200 230~800 Y180M-4 18.5 9926
2YA2160 12.6 6~50 200 230~800 Y200L-4 22 11249
YAH2160 12.6 30~150 400 350~1500 Y200L-4 30 12490
2YAH2160 12.6 30~150 ; 6~50 400 350~1500 Y200L-4 30 13858
YA2448 11.5 6~50 200 200~700 Y180 M -4 18.5 9834
YAH2448 11.5 6~50 400 310~1300 Y200L-4 30 11830
2YAH2448 11.5 30~150; 6~50 400 310~1300 Y200L-4 30 13012
YA2460 14.4 6~50 200 260~780 Y200L-4 30 12240
2YA2460 14.4 6~50 200 260~780 Y200L-4 30 13583
YAH2460 14.4 30~150 400 400~1700 Y200L-4 30 13096
2YAH2460 14.4 30~150 ; 6~50 400 400~1700 Y200L-4 30 14455
