Chute Feeder

Chute Feeder
Product Introduction
A periodic and reciprocating feeding machine for large bulk materials
Capacity
10~90t/h
Product Improvement
According to user requirements, the motor can be changed to the speed adjustment motor to adjust the feeding volume.

Advantages

  • Simple structure, even feeding, good continues performance

  • Change and control flow and feeding volume at any time

  • Stable transmission, high efficiency

  • Compact structure, reasonable design

  • Excellent quality, wide application

3D Exploded Video

Every single part and working principles of Chute Feeder are showed in Xinhai 3D video, which is really convenient for you to see the structure and working principles of those large equipment.

Work Principle

The machine is usually installed underneath the discharging opening of ore bin. Minerals fall on the bushing. The bushing is located at the chute bottom, configured on idler wheel and via eccentric device connected with reducer which is linked to electric motor by coupler. When it works, electric motor drives reducer via coupler; eccentric disk and drain cap which is situated between chute frame bottom and roller begin to do reciprocal and linear motion so as to uniformly feed minerals.

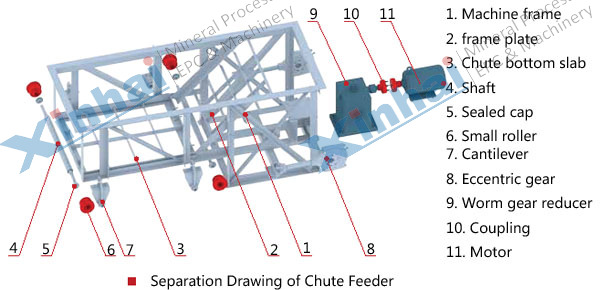

Product Structure

Chute Feeder

Product Application

The chute feeder is used to convey mineral lump from storage silo to equipment in industries like smelting, mining, chemical, building material, concentrating and coal, etc.

Technical Parameters

Model Outlet Dimension (W X H) (mm) Max. Feed Size (mm) Feed Capacity (t/h) Motor Model Motor Power
(kW)
Weight
(kg)
CG300X300 300X300 50 10~20 Y90L- 4 1. 5 265
CG400X400 400 X400 100 10~30 YCT160-4A 2. 2 640
CG600X500 600 X500 200 10~50 Y112M- 4 4 1045
CG700X500 700 X500 200 10~60 1100
CG980X1240 1240X980 350 36~90 Y160M- 6 7. 5 1710
