Overflow Type Ball Mill

Overflow Type Ball Mill
Introduction
A ball mill with simple structure
Capacity
0.17~170t/h
Product improvement
Wet type overflow ball mill is lined with Xinhai wear-resistant rubber sheet with excellent wear resistance, long service life and convenient maintenance

Advantages

 Overflow type ball mill

  • Jack-up device, easy maintenance

  • The hydrostatic and hydrodynamic bearings ensure the smooth operation

  • Low speed transmission is easy for starting and maintenance

  • The oil-mist lubrication device guarantees reliable performance of bearings

  • The gas clutch adopts the flexible start-up model

Products feature

The discharging of  wet type overflow ball mill relies on the inclination because of the outlet hollow shaft diameter larger than inlet hollow shaft diameter. When the slurry surface is higher than outlet generatrix, the slurry overflow discharges from the mill

Product principle

 Overflow ball mill

The main component of wet overflow ball mill is a cylinder with bigger diameter and smaller length which is revolved by transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded. The falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Hollow shaft with the anti-spiral blade returns the steel ball and the coarse ore block.

Product Structure

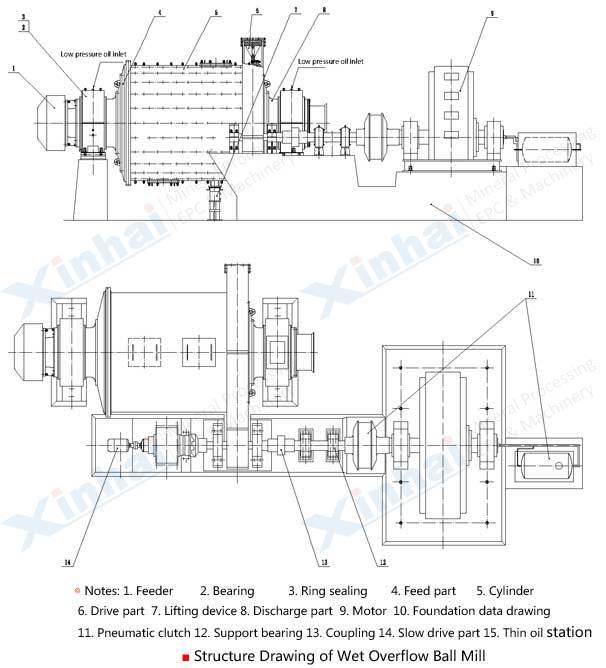

Overflow Type Ball Mill

Wet type overflow ball mill works for fine fineness grinding.

Technical Parameters

Model Cylinder
Diameter
(mm)
Cylinder
Length
(mm)
Motor Model Motor
Power
(kW)
Length
(mm)
Width
(mm)
Height
(mm)
Effective
Volume
(m3)
Max. Ball Load (t) Weight
(kg)
MQY0918 900 1800 Y225M-8 22 5080 2300 2015 0.9 1.66 6078
MQY1212 1200 1200 Y225S-8 18.5 5788 2994 2540 1.14 2.4 11473
MQY1224 1200 2400 YR280S-8 55 6112 2794 2540 2.28 3.8 12308
MQY1515 1500 1500 JR115-8 60 5766 2945 2600 2.2 6.4 15424
MQY1530 1500 3000 JR125-8 95 7979 2945 2600 5 10 18690
MQY2122 2100 2200 JR128-8 155 8070 4840 3795 6.6 14 47800
MQY2130 2100 3000 JR137-8 210 8870 4840 3795 9 20 47220
MQY2136 2100 3600 JR137-8 210 9300 4840 3795 10.8 22 52010
MQY2145 2100 4500 JR148-6 310 11029 4738.6 3300 13.5 23.8 58305
MQY2430 2400 3000 JR1410-8 280 9710 4778 4120 12.1 23 65880
MQY2721 2700 2100 JR1410-8 280 9400 5600 4700 10.7 24 63900
MQY2736 2700 3600 TDMK400-32 400 13049 5800 4680 17.8 32 96570
MQY2740 2700 4000 TDMK400-32 400 11850 5667 4496 20.4 40 78800
MQY3231 3200 3100 TDMK630-36 630 12750 6760 5150 21.4 45 107660
MQY3245 3200 4500 TDMK630-36 630 14356 7200 5152.5 32.8 65 130283
MQY3254 3200 5400 TM1000-36/2600 1000 15800 6760 5200 37.2 73 121000
MQY3645 3600 4500 TM1000-36/2600 1000 15000 7200 6326 41.8 76 135000
MQY3650 3600 5000 TM1250-40/3250 1250 17157 7755 6326 46.4 86 145000
MQY3660 3600 6000 TM1250-40/3250 1250 19000 7755 6326 55.7 102 154000
MQY3690 3600 9000 TDMK1800-30 1800 28000 4600 5600 83 163 212000
MQY3867 3800 6700 TDMK1600-30 1600 19000 8200 7100 70 130 186000
MQY4067 4000 6700 TDMK1800-30 1800 15600 9600 7300 78 138 207000
MQY4561 4500 6100 TDMK2200-30 2200 18200 10500 7600 93 151 238000
