Zinc Powder Displacement Device

Zinc Powder Displacement Device
Product Introduction
A system extracts gold from pregnant solution by zinc powder
Capacity
≤1200m3/d
Product Constitution
Zinc powder displacement process is composed of pregnant solution purification, deoxidation and zinc powder filtering replacement

Zinc Powder Displacement Flow Sheet

Zinc

Powder Displacement Flow Sheet

  • Pregnant solution storage pool

  • Settle tank

  • Deoxygenation tower

  • Hydraulic jet pump

  • Water pump

  • Water tank

  • Zinc powder feeder

  • Zinc powder mixer

  • Water sealing pump

  • Frame filter press       Poor solution pool

Product Structure

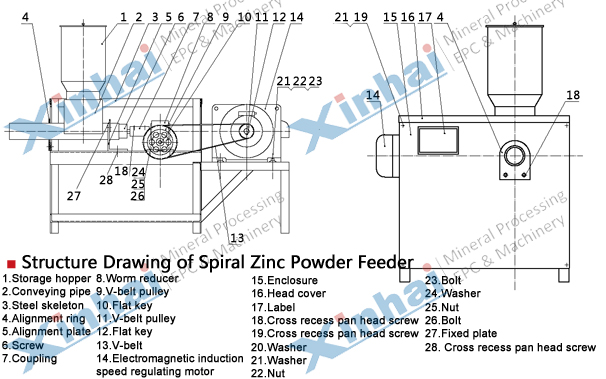

Spiral Zinc Powder Feeder

Process and Equipment

Zinc powder displacement process has 3 steps including pregnant solution purification, deoxidation and zinc powder filtering replacement

1. Pregnant solution purification

Principle: Gold pregnant solution often contains suspended solids which should be removed before replacement. Pregnant solution purification is the process to remove suspended solid.

Equipment:

2. Deoxidation

Work Principle: Dissolved oxygen in pregnant solution hinders displacement of zinc and gold

Equipment:

  •  Deoxidation tower

    Deoxidation tower

3.Displacement and filtering

Work principle:Including 2 steps adding zinc powder and displacement; when adding the zinc into pregnant solution, the displacement action starts. The displacement equipment finishes the displacement and gold mud filtration

Equipment:

a, Zinc powder adding

  • Spiral powder feeder

    Spiral powder feeder

  • Belt type zinc powder feeder

    Belt type zinc powder feeder

  • Disc
type powder feeder

    Disc type powder feeder

b, Displacement

  • Zinc powder mixer

    Zinc powder mixer

Product Application


The device is mainly aimed at gold ore containing silver. After purification and deoxidation, zinc powder displacement device is added, and finally the gold mud is obtained.


Technical Parameters

Please contact with Xinhai customer service to know the detailed technical parameter and other information.
