SF Flotation Cell

SF Flotation Cell
Introduction
SF flotation cell is a mechanical agitation type flotation equipment with self-slurry suction and self-air suction
Effective Volume
0.37~20m3
Product Improvement
Both sides of the impeller with back rake blades ensures double circulating of slurry inside the flotation tank.
Forward type tank, small dead end, fast foam movement

Advantages

  • Large air suction volume, low power consumption

  • Long service life of wear parts

  • Each tank with air suction, slurry suction and flotation function does not need any accessory equipment to form flotation circle, which is convenient for process flow changing

  • The reasonable slurry circulation minimizes coarse sand sediments, and is conducive to flotation of coarse particle

  • Auto-control device of slurry volume, convenient adjustment

  • Impeller with backward style upper and lower leaf, the upper blade generates upper circulation; the lower blade generates lower circulation.

  • Mechanical stirring, self- air suction, self-slurry suction

  • SF flotation cell is composed flotation cell unit with JJF flotation cell as the suction tank of every operation

3D Exploded Video

Every single part and working principles of SF Flotation Cell are showed in Xinhai 3D video, which is really convenient for you to see the structure and working principles of those large equipment.

Work Principle

When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

Product Structure

 SF Flotation

Cell

SF flotation cell adopts creative forward tank, double side blades of water wheels, draft tube and the false bottom device. The slurry in tank takes upper and lower circulation according to the fixed flow mode, which is conducive to suspension of coarse particle.

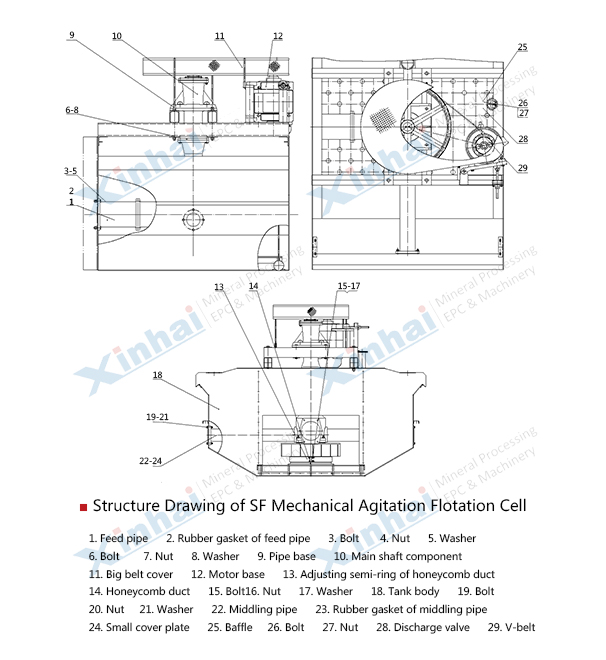

Separation Drawing

SF flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to roughing and scavenging of large and middle scale flotation plants.

Technical Parameters

Model Effective
Volume
(m3)
Capacity
(m3/min)
Impeller
Diameter
(mm)
Impeller
Revolution
(r/min)
Motor Power for Stir (kW) Motor Power for Scraper (kW) Single Tank Weight (kg)
SF-0.37 0.37 0.2~0.4 300 352~442 1.5 0.55 468
SF-0.7 0.7 0.3~1.0 350 336~384 3 1.1 629
SF-1.2 1.2 0.6~1.6 450 312 5.5 1.1 1373
SF-2 2 1.5 ~3 550 280 11 1.5 1879
SF-2.8 2.8 1.5~3.5 550 280 11 1.5 1902
SF-4 4 2.0 ~4 650 235 15 1.5 2582
SF-6 6 3~6 760 191 30 2.2 3540
SF-8 8 4.0 ~8 760 191 30 2.2 4129
SF-16 16 5.0 ~16 850 169~193 45 1.5 7415
SF-20 20 10 ~12 850 169~193 45 1.5 9828
