Efficient Deep Cone Thickener

Efficient Deep Cone Thickener
Product Introduction
A independently developed deep cone thickener, the underflow concentration up to 70%
Capacity
60~880m3/h
Product Improvement
Large angle cone, high underflow concentration

Advantages

 Efficient Deep Cone Thickener

  • Small area taken, large capacity

  • Slender body, flocculants are added in the process of concentrate; accelerate the particle settlement and dewatering process.

  • Reasonable structure, low energy consumption, high efficiency and low operation and maintenance cost

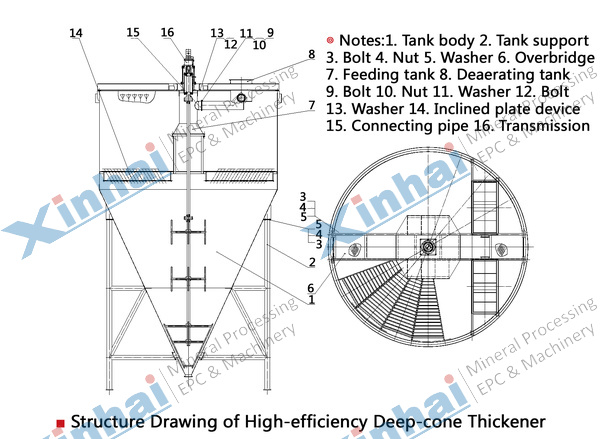

Product Structure

 Efficient Deep Cone Thickener

Deep cone thickener also called paste thickener is higher than other thickeners which consists of deep cone, feeding device, stirring device, control box, reagents adding device, automatic control system, etc.

Efficient deep cone thickener is mainly applied in thickening of minerals or other fine materials.

Technical Parameters

Motor Tank Diameter(mm) Tank depth (mm) Sedimentation Area(m2) Capacity (m3/h)
GSNG-3 3000 4404 21 60-70
GSNG-6 6000 8810 85 210-260
GSNG-9 9000 13500 310 570-700
GSNG-12 12000 17500 510 800-1200
GSNG-15 15000 19000 1200 1000-1500
GSNG-18 18000 22000 2000 1400-2100
GSNG-20 20000 22800 2700 2100-2600
