Autogenous Mill

Autogenous Mill
Product Introduction
A wet autogenous mill that materials as grinding media
Feeding Particle Size
200-350mm
Product improvement
High-efficiency autogenous mill can realize the second and third stage crushing and screening, and part or all crushing and grinding of rod mill or ball mil. Low power consumption, no dust pollution, less auxiliary equipment, easy production automation, and stable particle size.

Advantages

Simplify the crushing and grinding process; feeding particle size is 200-350mm, and after the first autogenous grinding, the product particle size reaches below a few millimeter. It is suitable for ore with high content of mud and water; small area taken, low investment

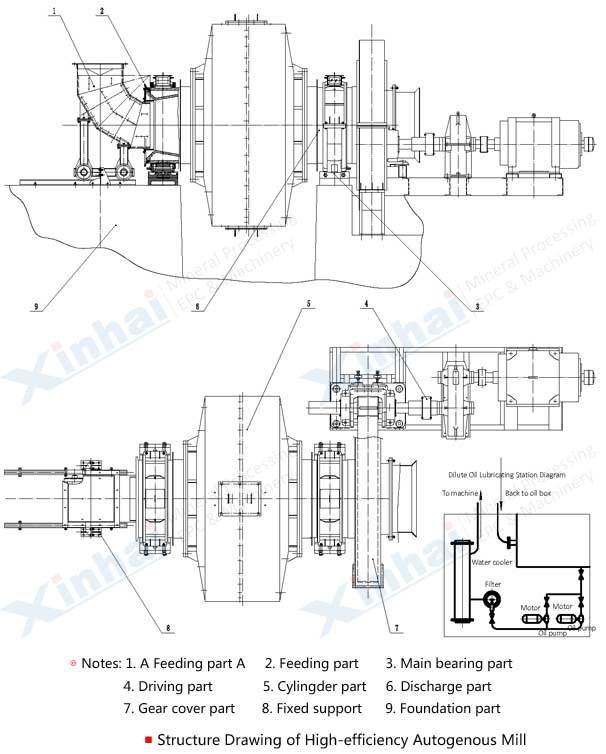

Product Structure

Autogenous Mill

Except for few hard ore, most of metal ores could use wet autogenous mill.

Technical Parameters

Model Diameter (mm) Length (mm) Feed Size (mm) Main Motor
Model Power (kW) Voltage (V) Weight (t)
ZMJ4014 4000 1400 < 350 JR148-8 245 10000 75
ZMJ4018 4000 1800 < 350 JR1410-8 320 10000 82
ZMJ5518 5500 1800 < 400 TDMK800-36 800 10000 175
ZMJ6522 6500 2200 < 400 TDMK1600-40 1600 10000 280
ZMJ7525 7500 2500 < 400 TM2500-16 2500 10000 455
ZMJ7528 7500 2800 < 400 TM2500-16 2500 10000 465
