Spring Cone Crusher

Spring Cone Crusher
Product Introduction
Low power consumption and high production efficiency
Production Capacity
5~750t/h
Product improvement
The movable cone swings close to discharge opening of crushing cavity, which intersects an equal parallel strip between them to make end products granularity. Adopting dry oil and water sealing avoids the dust entering.

Advantages

 Spring cone crusher

  • Continuous rotation of the operated cone body and high productivity

  • Easy to press, impact and crush and low power consumption

  • Even particle size of products and uniformly surface wear of movable cone

  • Simple structure: frame, horizontal axis, movable cone, balance wheel, eccentric bushing, upper crushing wall (fixed cone), down crushing wall (movable cone), fluid coupling, lubrication system, hydraulic system, control system, etc.

  • The movable cone swings close to discharge opening of crushing cavity, which intersects an equal parallel strip between them to make end products granularity. The feed opening is not large, which can deal with the primary crushed materials.

  • This kind of cone crusher adopts dry oil and water sealing avoiding dust entering and keeping clean.

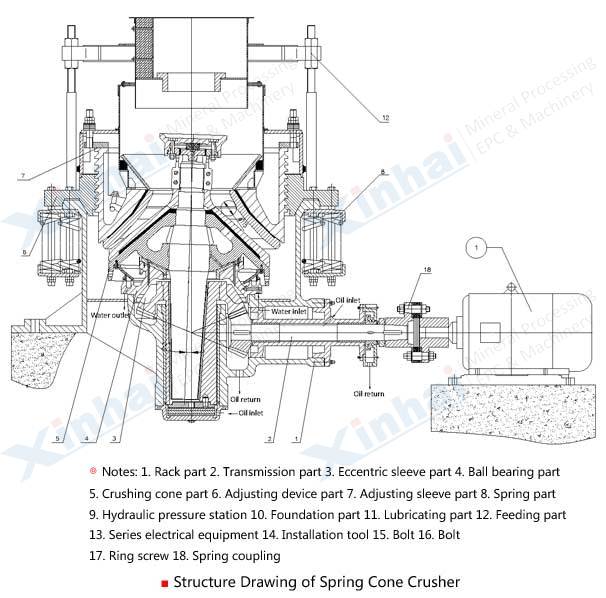

Product Structure

Spring cone crusher

Application

Spring cone crusher

This kind of cone crusher is widely applied in metallurgical, construction, road building, chemical and phosphatic industry. It is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, grit stone, etc.

Technical Parameters

Type Model Diameter of Crushing Cone (mm) Inlet Dimension (mm) Max. Feed Size (mm) Adjustment Range of Outlet (mm) Motor Power
(kW)
Capacity
(t/h)
Standard PYB-600/75 600 75 65 12 ~25 30 40
PYB-900/135 900 135 110 15 ~50 55 50 ~90
PYB-1200/170 1200 170 145 20 ~50 110 110~168
PYB-1750/250 1750 250 215 25 ~60 155 280~480
PYB-2100/350 2100 350 300 30 ~60 280/210 500~800
PYB-2200/350 2200 350 280 500~1000
Middle-sized PYZ-900/70 900 70 60 8~20 55 20 ~65
PYZ-1200/115 1200 115 100 8~25 110 42~135
PYZ-1750/215 1750 215 180 10 ~30 155 175~320
PYZ-2200/275 2200 275 230 280 200~580
Short Head PYD-600/40 600 40 35 3~13 30 12 ~23
PYD-900/50 900 50 40 55 15 ~50
PYD-1200/60 1200 60 50 3~15 110 18 ~105
PYD-1750/100 1750 100 85 5~15 155 75~230
PYD-2200/130 2200 130 100 280 125~350
