Tilted Plate Thickener

Tilted Plate Thickener
Product Introduction
A slurry gravity thickener designed with tilted plate in sedimentation area
Sedimentation Area
20~3500m2
Product Improvement
The stirring device is installed in the center of tiled plate thickener; the vibrator is installed on the outer wall of cone to accelerate the thickening and avoid blockage.

Advantages

  • The vibrator reduces the blockage by high frequency vibration and impact

  • Installing underflow valve to increase the concentration of underflow

  • The tilted plates installed in thickener are good for large equipment and reducing the height which improve capacity by 2-3 times

Work Principle

 Tilted plate thickener


Firstly, mineral liquid is mixed uniformly and then carried into thickener. Secondly, by the action of cohesive and gravitational force, the majority of overflows are overflowed through the overflow groove. The minority of overflows form small cyclone inside the settling area and subsequently are compressed in the compressive area. As a result, granules are compressed by gravity and then fall down, while clear liquid moves upward. Finally, concentrations are discharged from the lower underflow tube.

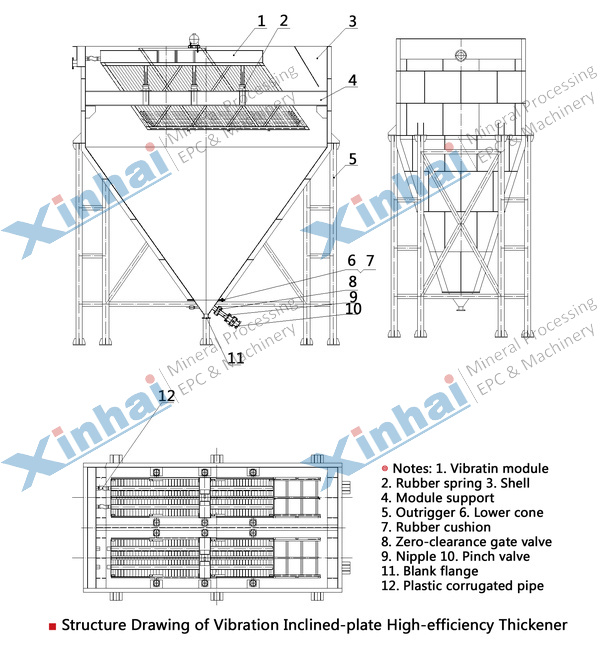

Product structure

 Tilted Plate Thickener

Tilted plate thickener is used to clear and thicken the fine coal slime, floatation tailings and other slurry.

Technical Parameters

ZQN Specification Table

Model Subsidence Area (m2) Cone Hopper Number Length (mm) Width (mm) Height (mm)
ZQN16 16 1 3690 1100 4360
ZQN31 31 1 3760 2460 4360
ZQN50 50 1 3690 3300 5260
ZQN63 63 1 5560 2460 5630
ZQN100 100 1 5560 3560 5500
ZQN125 125 1 5510 4400 5660
ZQN150 150 1 7710 3760 7890
ZQN200 200 1 7710 4880 8160
ZQN250 250 1 7710 6000 8500
ZQN300 300 1 8000 7020 7890
ZQN400 400 1 7710 9260 7890
ZQN500 500 1 7710 11500 8500
ZQN600 600 1 14880 7020 7890
ZQN800 800 1 14880 9260 8160
ZQN1000 1000 1、2、4 14880 11460 8500
ZQN2000 2000 4、8 14880 22920 8500
