Concentrating Table (Shaking Table)

Concentrating Table (Shaking Table)
Introduction
Concentrating table is a gravity separation equipment of separation different weight mineral by asymmetric reciprocating motion
Capacity
0.1~1.8 t/h
Product Improvement
The cam lever type head is adopted; the stroke is adjusted by changing the position of sliding head on rocker arm; jig frequency is controlled by the smoothing motor pulley.

Advantages

 Shaking table

  • The large range of transverse slope adjustment(0~10°),adjustable stroke;

  • Keep the stably operation when change the transverse slope and stroke

  • Spring is arranged in the case with compact structure

  • Without reagents consumption, little electricity consumption

Work Principle

The working principle of gold concentrating table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

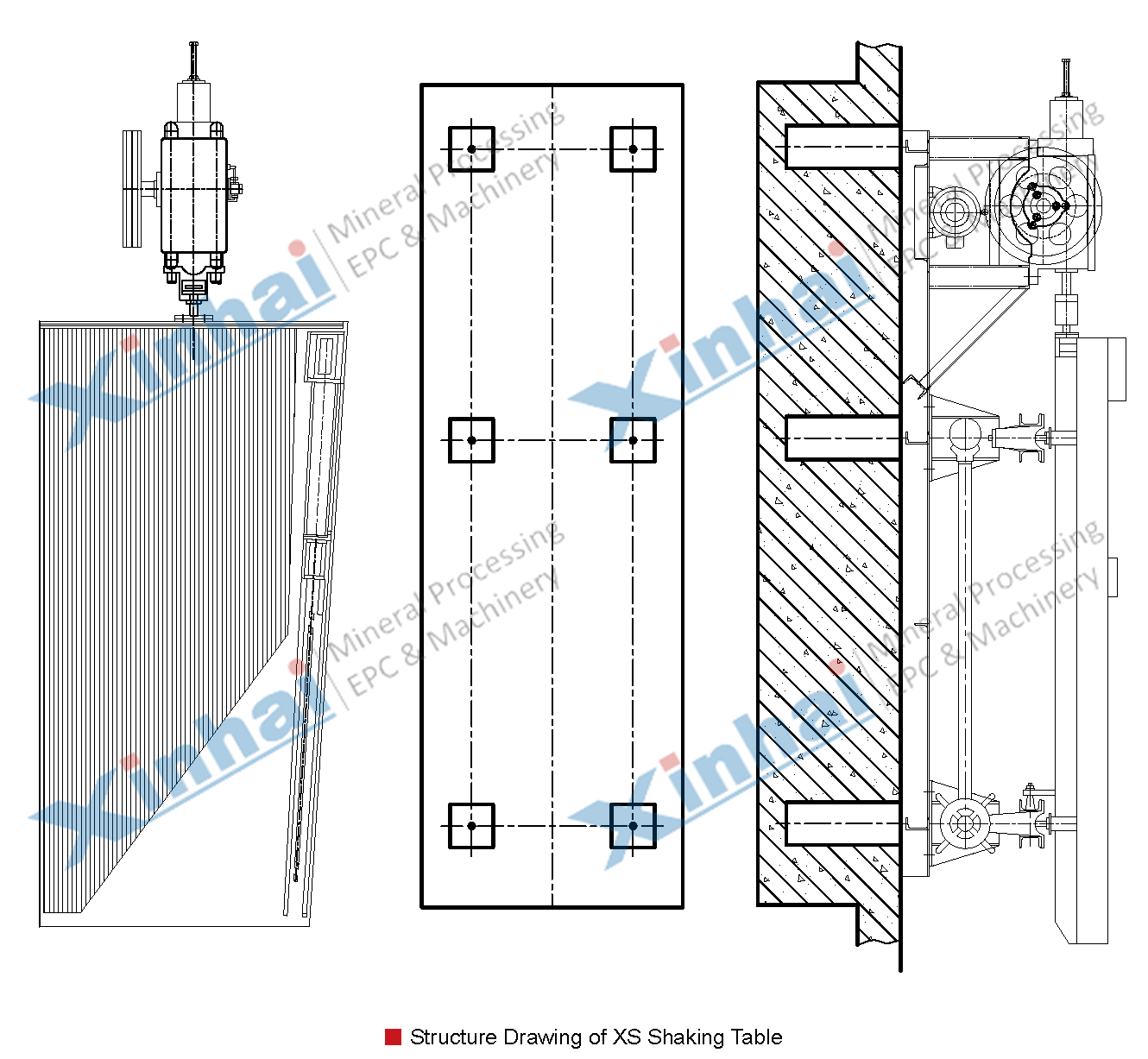

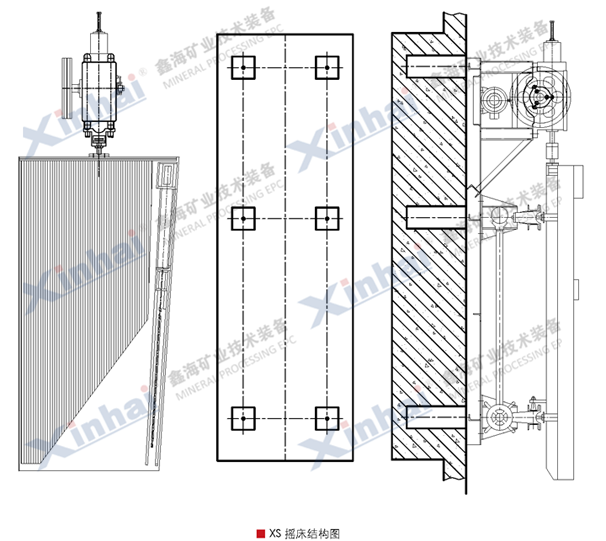

Product Structure

Concentrating Table

 Shaking table

Concentrating table is applied in roughing, cleaning and scavenging for dressing coarse sand(2- 0.5mm), fine sand (0.5-0.074mm), pulp (-0.074).

Technical Parameters

Model XS 7.6 XS 4.08 XS 1.95 XS 0.5
Bed Surface Type Coarse Sand Bed Surface Fine Sand Bed Surface Slurry Bed Surface 3 Kinds Of Bed Surfaces Selectable
Beneficiation Area of Bed Surface (m2) 7.6 7.6 7.6 4.08 1.95 0.5
Bed Surface Dimension Length (mm) 4500 4500 4500 3000 2100 1100
Width of Driving End (mm) 1850 1850 1850 1320 1050 500
Width of Concentration End (mm) 1550 1550 1550 1100 850 430
Max. Feed Size (mm) 2 0.5 0.074 Ore Sand -2 Slurry -0.1 Ore Sand-2 Slurry -0.074 Ore Sand -2 Slurry -0.074
Capacity (t/h) 1 ~1.8 0.5 ~1 0.3~0.5 0.4~1.5 0.3~0.8 0.05~0.2
Feed Density (%) 20 ~30 18 ~25 15 ~20 10 ~30
Stroke (mm) 16 ~22 11 ~16 8~16 6~30 12 ~28 9~17
Jig Frequency (r/min) 220 250 280 210~320 250~450 280~460
Water Consumption (t/h) 0.7 ~1 0.4 ~0.7 0.4 ~0.7 0.3~1.5 0.2 ~1 0.1~0.5
Notch Groove Section Shape Rectangle Sawtooth Wave Triangle Rectangle, Sawtooth Wave and Triangle Selectable
Motor Power (kW) 1.1 1.1 1.1 1.1 1.1 0.55
