Linear Vibrating Screen

Linear Vibrating Screen
Product introduction
A vibrating screen that screen box takes reciprocating movement along the directional linear, is used for fine screening.
Capacity
20~300t/h
Product improvement
Screen angle is adjustable
Vibrating motor as vibration exciter, low energy consumption

Advantages

  • Small motor power, only 1/4-1/5 of other screen

  • High screen efficiency

  • Adjustable screen angle

  • Transferring the small load to base do not need special treatment

  • Screen mesh is made of wear-resistant rubber with long service life

Working principle

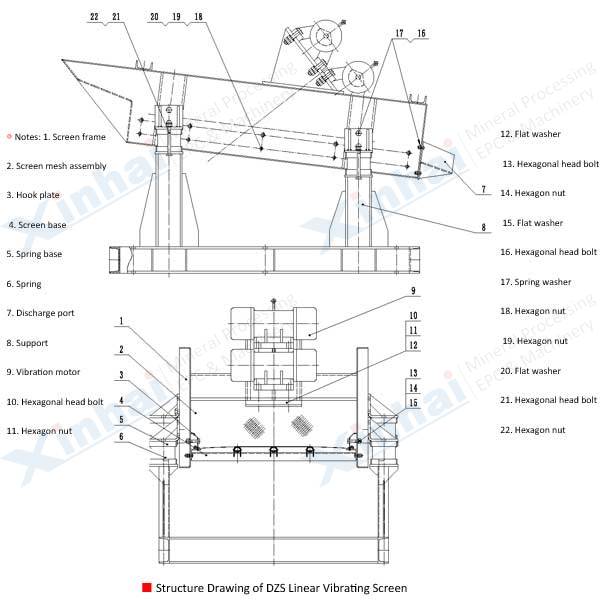

 Structure diagram of linear vibrating screen

When linear vibrating screen works, the two motor reversely placed synchronously generate reverse force, which forces the screen body do the vertical motion. The materials on vibrating screen under the exciting force are periodically thrown forward to finish screening.

Product Structure

Linear Vibrating Screen

Linear vibrating screen is applied in dewatering, de-mud, de-liquid and de-heavy medium

Technical Parameters

Model Screening Area (m2) Amplitude (mm) Motor Model Motor Power (kW) Rotating Speed (r/min)
DZS0412 0.4X1.2 2~4 YZS-3-6 0.25 970
DZS0415 0.4X1.5
DZS0612 0.6X1.2
DZS0718 0.7X1.8 YZO-10-6 0.75 960
DZS0816 0.8X1.6
DZS0912 0.9X1.2
DZS0918 0.9 X 1.8 YZU-10-6 0.75
DZS1018 1.0X1.8 4~6 YZU-16-6 1.1 950
DZS1020 1.0X2.0 3~5 YZO-20-6 2
DZS1225 1.25X2.5 YZU-16-6 1.1
DZS1530 1.5X3.0 YZU-20-6B 1.5 960
2DZS1530 1.5X3.0 YZO-20-6 2 950
DZS1536 1.5X3.6 YZU-20-6B 1.5 960
2DZS0918 0.9 X 1.8 4~6 YZU-25-6B 1.5 960
2DZS1018 1.0 X 1.8 2~4 YZU-20-6B 1.5 960
