Pinch Valve

Pinch Valve
Product Introduction
A wear-resistant pinch valve with excellent corrosion resistant and sealing ability
Pressure
1.6MPa/cm2
Product Improvement
Wear – resistant rubber liners, resistance to corrosion and wear, prolong the service life of equipment 2 times; Wear - resistant rubber spool, high resilience, reliable opening and closing

Advantages

Pinch Valve

  • High resilience rubber liners with rubber boss, no leakage

  • Smooth internal surface makes slurry flow stably and fast without flow resistance

  • The rubber elasticity exceeds 80%, the slurry will not cause water hammer impact.

  • Valves liners have strong anti fatigue ability, longer service life

  • Easy to replace, simple structure and convenient operation

  • High resilience rubber spool, more flexible and reliable opening and closing

Product Structure

Wear-resistant Pinch Valve

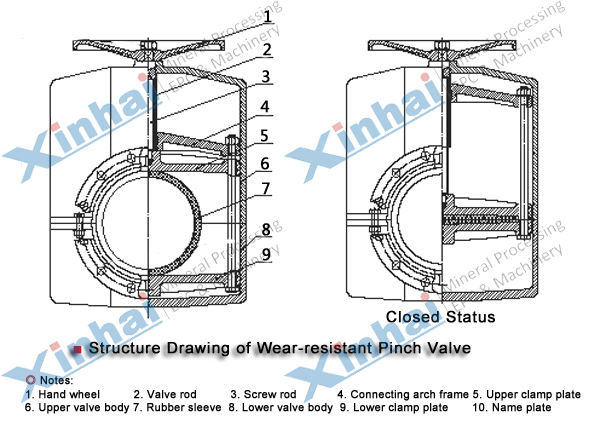

Wear-resistant Pinch Valve is composed of upper grip, valve body, rubber spool and lower grip

Application

Automatic control or remote control for all kinds of wear-resistant and non-wear-resistant pipelines; uniform addition of reagents in chemical industry or mine

Technical Parameters

Specification D B C A E F G Standard Flange Weight (kg)
Flange Diameter Bolts PCD Bolts Diameter Al Iron casting
20 20 144 150 15 119 80 100 105 75 4-Φ14 1.6 2.8
25 25 159 165 15 119 90 125 115 85 4-Φ14 2.3 3.2
40 40 199 205 17 119 118 162 140 100 4-Φ18 3.5 5.5
50 50 229 235 17 220 156 185 150 110 4-Φ18 6.5 12.5
65 65 299 305 17 220 190 200 165 125 4-Φ18 8.8 15
80 80 309 315 21 220 202 225 185 145 4-Φ18 10.5 22
100 100 354 360 25 220 247 269.5 200 160 8-Φ18 18.2 41
125 125 419 425 28 280 310 350 220 180 8-Φ18 29 66
150 150 479 485 29 280 343 373 285 240 8-Φ18 42 99
200 200 594 600 30 280 457 486.5 340 295 8-Φ22 87 230
