Knife Gate Valve

Knife Gate Valve
Product Introduction
A Knife Gate Valve with spool made of wear-resistant rubber developed by international advanced technoloy
Pressure
1.6MPa/cm2
Product Improvement
High resilience of rubber liners of valve, tight combination between gate valve and disc, guarantee the sealing

Advantages

Knife Gate Valve

  • Rubber spool is produced with " liquid phase nanometer compounding, normal temperature high-frequency curving". Wear-resistant index id over 128% and its service life is 2-4 times longer than ordinary valves under the same working conditions.

  • Xinhai wear – resistant rubber as liners of knife gate valve owns high resilience up to 86% and high sealing performance, no leakage

  • Simple structure, convenient operation and maintenance

  • No pressure lose

Product Description

Knife gate valve is composed of seat, valve lining, gate, support and drive device, simple and convenient composition.

Generally Xinhai gate valves are hand-operated and they can also be made into air-operated or electromotive ones according to the requirements of users. It can be operated on the spot as well as remote controlled. Structural length and flange dimension are in accordance with National Standard of China and they also can be made according to the user requirements.

Product Structure

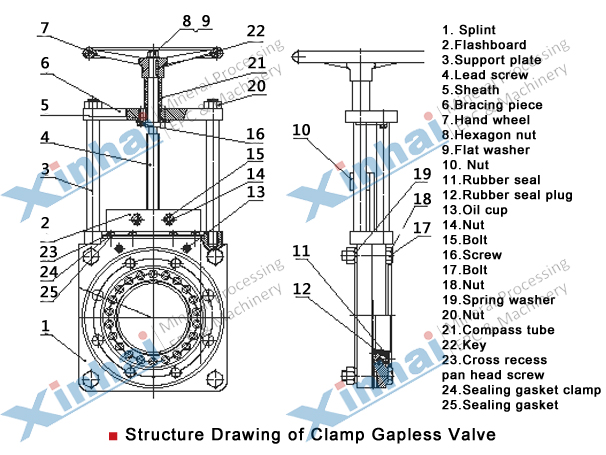

lamp Gapless Valve

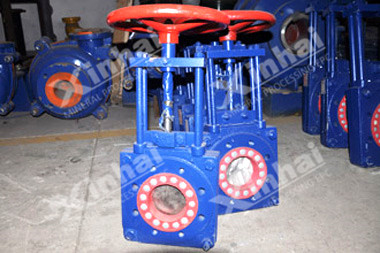

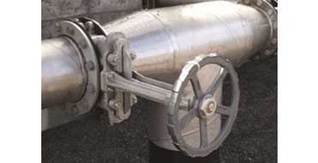

Xinhai knife gate valve is mainly manual gate valve. Xinhai can also manufacture electric and pneumatic gate valve according to the needing of customers. The three kinds of gate valve can be carried out by remote control. In addition, the valve body is fitted with oil nipple to reduce the friction on gate and force moment of opening and closing of the valve. Spool made of wear – resistant rubber, small specific gravity, easier to replace

Application

Knife Gate Valve

Used in full open and close working conditions such as feeding to cyclones, double return pipes

Technical Parameters

Performance of Xinhai motorized knife gate valve of series XWXZF/D-1.6

DN Pressure(Mpa) Motor of electric device Max torque (N•m) Motor Power(KW)
50 1.6 DZ10 100 0.25
65 1.6 DZ10 100 0.25
80 1.6 DZ10 100 0.25
100 1.6 DZ10 200 0.37
125 1.6 DZ10 200 0.37

XWXZF/D-1.6 Structure and dimension of Xinhai motorized knife gate valve

DN A D D1 D2 n-Φd B H H1
50 60 165 125 94 4-Φ18 180 546 90
65 60 185 145 112 4-Φ18 200 565 100
80 64 200 160 126 8-Φ18 220 580 110
100 64 220 180 150 8-Φ18 240 610 120
125 70 250 210 178 8-Φ18 270 640 135
