Xinhai 3D Exhibition Room

3D Exhibition Room designed by Xinhai 3D technical specialists Launched on January 2016. Xinhai, since its establishment in 1997, has always been walking in the head of domestic mining processing industry. In the Internet Age, Xinhai follow the trend of development and introduces 3D technology. Combined with the industrial features, Xinhai 3D technical specialists have madeHolographic Emitter3D equipment models3D demo Video, and3D exhibition room.

3D Equipment Exhibition

There are ten kinds of mining equipment in 3D exhibition room, Chute Feeder, Jaw Crusher, Round Vibrating Screen, Wet Grid Ball Mill, Slurry Pump, Flotation Cell, Efficient Thickener, Desorption electrolysis system, Agitation Tank, and Hydrocyclone.

3D Equipment Details

In 3D exhibition room, all the equipment is explained in detail, including overview, structure, features, specifications, working principles and related cases.

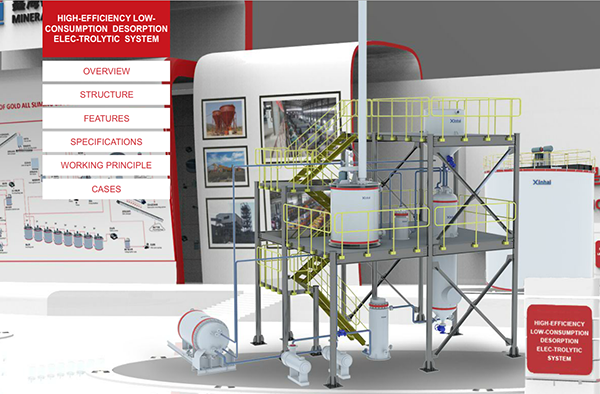

Every single part and working principles of the equipment are showed in 3D video, which is really convenient for you to see the structure and working principles of those large equipment, like Desorption electrolysis system.

mining equipment

3D Project Video

3D Project Video is an important part in Xinhai 3D application. From crushing to concentration produced, the video restore whole sense of the plant and its production process.

[Gold CIP Production Line]

Xinhai gold EPC project in Sudan mainly adopts the method of carbon absorption. This method adsorbs gold from cyaniding pulp by active carbon including 7 steps: leaching pulp preparation, cyaniding leaching, carbon adsorption, gold loaded carbon desorption, pregnant solution electrodeposit, carbon regeneration, leaching pulp, which received a high recovery rate of 92.5%.

[Cu-Pb-Zn Dressing Process]

Tibet Lead zinc Beatification Plant is one of our successful cases. The design scale is 600,000 tons per year, 2400 T/D. This project has been constructed in two stages. First-stage project design scale is 300,000 tons per year, 1200 T/D. Second-stage project is just the same. This project adopts the method of flotation. The production is lead antimony concentrates and zinc concentrate. The index is 2%.

[Molybdenum Dressing Production Line]

Molybdenum Ore Plant in Fushan, Shandong Province is one of our successful cases. The process of the plant was once roughing, twice scavenging, four times cleaning, and molybdenum ore grade was 0.38%. In recent years, due to the mining depth increasing, ore properties had changed, so the flotation index became poor leading to more molybdenum metal loss. After field investigation and analysis, Xinhai determined the process according to multi tests: crude one stage grinding, once roughing, once rough cleaning, once rough cleaning concentrate regrinding, three times scavenging, seven times cleaning after regrinding, to achieve a better index.
