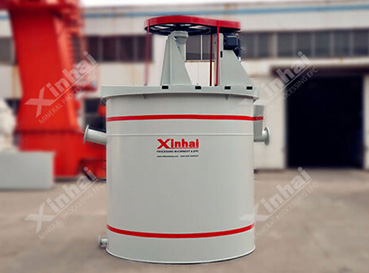

Mining slurry Agitation tank, agitation tank price , agitation tank manufacturer

The principle of the agitation tanks

The principle of the agitation tanks

The impeller rotates in the tank to drive the slurry flow. Under the action of the circulation cylinder, multiple small cycles are formed in the tank, thereby achieving uniform mixing of the slurry or reagent.
The principle of the slurry lifting mixing tank

The high-speed rotation of the centrifugal impeller generates negative pressure at the center of the impeller, and the external slurry is sucked into the tank through the cylinder seat at the bottom of the impeller, and the liquid level in the tank is continuously raised. After reaching a certain height, it flows out along the overflow pipe, thereby achieving the lifting capacity.
High-concentration slurry agitation tank principle

The agitation shaft adopts an upper and lower double impeller structure. Under high-speed rotation, the upper impeller presses the slurry downward, and the lower impeller lifts the slurry upward, allowing the two slurries to collide in the middle and then diffuse to the surroundings, thereby forming a large loop of the slurry with a higher concentration in the entire tank and generating an upward water flow in the tank, greatly reducing the sedimentation rate of the slurry and improving the agitation capacity to adapt to the agitation of high-concentration slurry.

Agitation tank model parameters

High-efficiency agitation tank model parameters

Model	Effective Volume (m³)	Rotating Speed of Impeller (r/min)	Diameter of Impeller (mm)	Motor Model	Motor Power (kW)	Weight (kg)
GBJ-1000×1000	0.58	530	240	Y112M-6	2.2	548
GBJ-1250×1250	1.15	350	240	Y100L2-41	3	820
GBJ-1500×1500	2.2	320	420	Y132M2-6	5.5	1350
GBJ-2000×2000	5.46	240	560	Y160M-6	7.5	3173
GBJ-2500×2500	11.2	232	560	Y180L-6	15	3939
GBJ-3000×3000	19.1	220	700	Y225S-8	18.5	6676
GBJ-3500×3500	31	248	700	Y225M-8	22	7581
GBJ-4000×4000	45	153	1000	Y250M-8	37	9560

Model parameters of ordinary agitation tank

Model	Effective Volume (m³)	Rotating Speed of Impeller (r/min)	Diameter of Impeller (mm)	Motor Model	Motor Power (kW)	Weight (kg)
BJ-500×500	0.0785	493	160	Y80L-4	0.55	120
BJ-750×750	0.25	530	240	Y100L-6	1.5	240
BJ-1000×1000	0.58	530	310	Y100L-6	1.5	680
BJ-1500×1500	2.2	320	400	Y132S-6	3	790
BJ-1600×1600	2.6	331	400	Y132M2-6	5.5	990
BJ-2000×2000	4.4	230	550	Y132M2-6	5.5	1800
BJ-2000×2500	5.9	230	630	Y160M-6	7.5	2106
BJ-2500×2500	11.2	230	630	Y160M-6	7.5	2766
BJ-3000×3000	19.1	210	700	Y225S-8	18.5	4613
BJ-3500×3500	24	230	850	Y225M-8	22	5980
BJ-4000×4000	45	153	1000	Y225M-8	30	8910

Model parameters of reagent agitation tank

Model	Effective Volume (m³)	Rotating Speed of Impeller (r/min)	Diameter of Impeller (mm)	Motor Model	Motor Power (kW)	Weight (kg)
BJW-500×600	0.094	493	200	Y80L-4	0.55	120
BJW-750×750	0.25	530	240	Y100L-6	1.5	230
BJW-750×1000	0.35	530	240	Y100L-6	1.5	270
BJW-1000×1000	0.58	530	240	Y100L-6	1.5	420
BJW-1250×1250	1.15	492	310	Y100L1-4	2.2	490
BJW-1500×1500	2.2	320	400	Y132S-6	3	1310
BJW-2000×2000	5.46	230	550	Y132M2-6	5.5	1720
BJW-3000×3000	14.8	210	700	Y225S-8	18.5	4613

Email: xhxu@xinhaimining.net Tel: +8613683147042

Model parameters of high temperature agitation tank

Model	Diameter (mm)	Height (mm)	Volume (m³)	Specific gravity of slurry (t/m³))	Power (Kw)	Weight (kg)
SJJ2.5-2.5	2500	2500	11	≤1.6	11	3087
SJJ3.5-3.5	3500	3500	30	≤1.4	30	5997

Model parameters of slurry lifting agitation tank

Model	Tank diameter (m³)	Tank depth (mm)	Effective volume (m³)	Impeller speed (mm)	Impeller diameter (mm)	Height increase (mm)	Motor model	Motor power (Kw)	Weight (kg)
TBJ-1000	1000	1266	0.9	460	300	980	Y132M-6	5.5	700
TBJ-1250	1250	1510	1.396	460	400	1220	Y160M-6	7.5	780
TBJ-1500	1500	1800	2.8	464	450	1470	Y160L-6	11	1022
TBJ-2000	2000	2000	5.8	312	600	1570	Y200L1-6	18.5	3122
TBJ-2500	2500	2500	11.5	310	600	2070	Y225M-8	22	3760

Model parameters of high concentration slurry agitation tank

Model	Effective Volume (m³)	Rotating Speed of Impeller (r/min)	Diameter of Impeller (mm)	Motor Model	Motor Power (kW)	Weight (kg)
BJN-1500×1500	2.2	43	700	XLD4-S-35	4	920
BJN-2000×2000	4.4	200	900	Y160M-6	7.5	1860
BJN-3000×3000	19.1	160	1300	Y22M-8	22	4660
BJN-4000×4000	46	120	1000	Y250M-8	30	8153

Cone bottom agitation tank model parameters

Model	Effective Volume (m³)	Rotating Speed of Impeller (r/min)	Diameter of Impeller (mm)	Motor Model	Motor Power (kW)	Weight (kg)
BJZ-750×750	0.26	530	240	Y90L-4	1.5	240
BJZ-1000×1000	0.62	530	240	Y100L-6	1.5	680
BJZ-1500×1500	2.38	320	400	Y132S-6	3	1375
BJZ-2000×2000	5.6	230	550	Y132M2-6	5.5	2000

Pickling agitation tank Agitation tank model parameters

Model	Effective Volume (m³)	Rotating Speed of Impeller (r/min)	Diameter of Impeller (mm)	Motor Model	Motor Power (kW)	Weight (kg)
BJS-1000×1000	0.86	513	240	Y90L-6	1.1	380
BJS-1250×1250	1.3	493	310	Y100L1-4	2.2	580
BJS-1300×1300	1.8	320	400	Y132S-6	3	750
BJS-1500×1500	1.83	320	400	Y132S-6	3	820

Agitation tank features

High efficiency Agitation tank features

Large impeller diameter, strong slurry and drug agitation ability;
The impeller has a high linear speed and strong agitation ability for slurry and drugs;
Umbrella-shaped impeller enhances the agitation capacity of slurry and drugs;
The enhanced agitation capacity also enhances the circulation capacity of slurry and drugs;
There is a guide body in the tank, and the larger negative compression is small in a limited space, which accelerates the suction capacity and makes the circulation capacity of the medicine ore stronger;
Downward running pressure of umbrella-shaped impeller.

a.The suction capacity and circulation capacity are increased, and a jet body is provided at the bottom of the flow guide body, so the circulation capacity of the medicinal ore is further enhanced;

b.Only when the mineral surface is 100% medicinal can higher indicators be achieved.

Features of ordinary mixing tank

The cylinder can be lined with wear-resistant and anti-corrosion rubber;
The impeller has a high linear speed and strong slurry agitation ability.

Features of the reagent mixing tank

The cylinder can be lined with wear-resistant and anti-corrosion rubber;
Strong ability to mix liquids and drugs.

Features of slurry lifting and mixing tank

Adopt wear-resistant rubber blades;
The lifting height can be determined according to user requirements.

High-concentration slurry agitation tank features

wear-resistant rubber blades;
The mixing concentration can reach up to 75%.

Cone bottom mixing tank features:

The cylinder can be lined with wear-resistant and anti-corrosion rubber;
High discharge capacity .

Pickling agitation tank features

Made of stainless steel or acid-resistant and wear-resistant rubber.

Agitation Tank Equipment Price

The price of Agitation Tank will vary depending on the requirements of mining materials, processing volume, output, etc. It needs to be analyzed based on the specific situation of the mine. Different models and configurations are slightly different. You can consult online or call customer service to obtain price information.
