Large reduction ratio, optimum design of chamber and high crushing efficiency
New cambered jaw increases the effective length of the jaw plate and brings lager capacity.

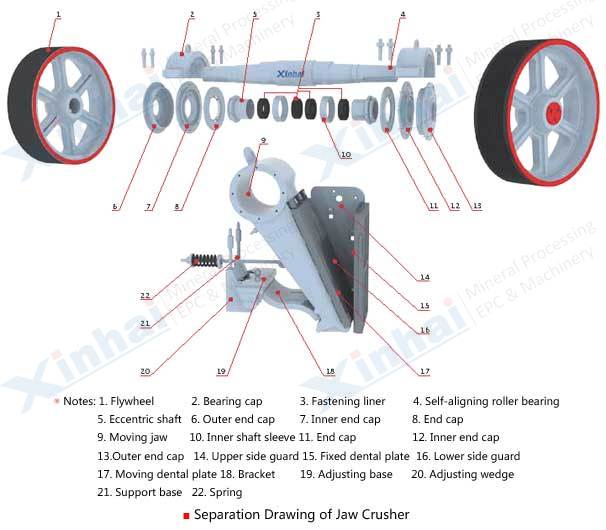

Every single part and working principles of Jaw crusher are showed in Xinhai 3D video, which is really convenient for you to see the structure and working principles of those large equipment.
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw, and the stuff will be crushed in multiple ways. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of jaw crusher moves away from fixed jaw by the pulling force of rod and spring, the products after crushing will be discharged from the outlet of Jaw crusher.
Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy, highway and railway, water conservancy and so on.Xinhai as famous jaw crushers manufacturer will provide suitable jaw crusher price and machine selection for you.
