Press Filter

Press Filter
Product Introduction
A dewatering equipment relying on pressure of slurry pump including chamber press filter and plate press filter
Filtering Area
20~1000m2
Product Improvement
Plastic steel filtering plate, resistance to high temperature and pressure, durable, programmable control, automatic operation

Advantages

Stable performance, high automation, safe and reliable, convenient operation, backwashing operation.

Work Principle

Chamber filter press takes filter cloth as the medium to separate solid and liquid. It is a separating machine with wide rang of particle size. The filter cloth spreads in a filter board surface, it is supported by the swelling groove of filter board, when the filter board is clamped, filter cloth turns to sealing materials, and the cavity between every two filter board forms a separated filter room. During the filter processing, the materials come through the central opening into filter room, the filtrate flow by the feeding pressure, flow out of the filter board after converged. Chamber filter press can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.

plate and frame press filter separates solid from the liquid in filter form. It is a separating machine with wide rang of particle size. Materials come through the filter room that made up of filter board and filter frame,under the pressure of feeding materials, the filtrate flow through the medium that made up of filter board and filter frame-fiber gap of the filter cloth, arriving at the pattern surface, flow out of the filter board after converged. The solid that left in the filter frame forms filter cake. Plate and frame filter can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.

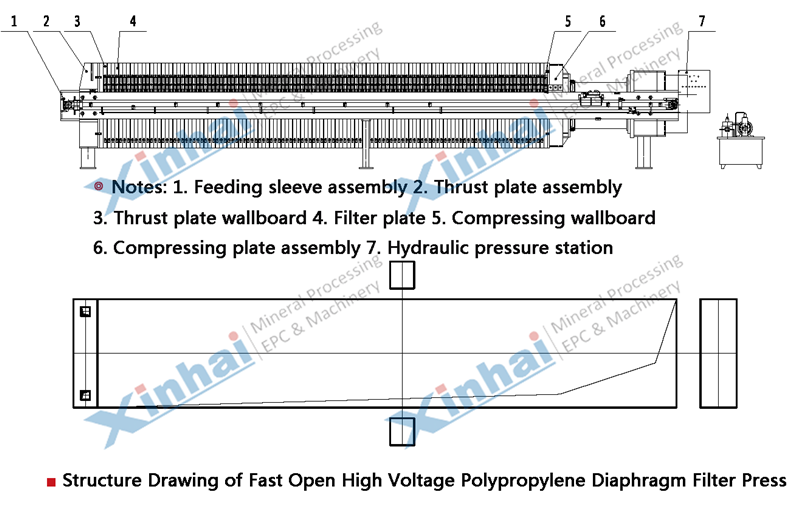

Product Structure

The filtering mechanism consists of  filter plate, filter frame, filter cloth and squeezing diaphragm. The two sides of the filter plate is coated by cloth. When squeezing diaphragm need to configure, filter plate consists of diaphragm plate and side plate. Chamber press filter as the left chart shown, plate filter as right chart shown

 Press filter

Widely used in pharmaceutical, chemical industry, metallurgy, standard parts, non-standard screws, dyes, food, brewing, ceramics, oil refining, sewage treatment and other environmental protection industry.

Application of chamber press filter: concentrate filtering, tailings dry stacking, the product particle size reaches -500 mesh

Application of plate press filter:Powder ore dewatering such as gold, silver, copper, iron, zinc and so on; treatment of tailings dam

Technical Parameters

Model Filter Area
(m2)
Number of Filter
Chamber
Spec. of Membrane Filter
Plate (MM)
Filter Cake Thickness
(MM)
Volume of Filter
Chamber (M3)
Filter
Pressure
(Mpa)
Overall Dimension
(mm)
Motor
Capacity
(kW)
Weight
(kg)
XM/AZ 20/800U 20 20 800×800×60 30 0.287 0.5~1.6 3500×1350×1160 2.2 2750
XM/AZ 30/800U 30 30 0.453 4110×1350×1160 3130
XM/AZ 40/800U 40 40 0.605 4720×1350×1160 3420
XM/AZ 50/800U 50 50 0.756 5330×1350×1160 3700
XM/AZ 60/800U 60 60 0.907 5940×1350×1160 4110
XM/AZ 70/800U 70 70 1.059 6550×1350×1160 4400
XM/AZ 80/800U 80 80 1.21 7160×1350×1160 4740
XM/AZ 40/900U 40 32 900×900×60 30 0.59 0.5~1.6 4230×1480×1280 2.2 4500
XM/AZ 50/900U 50 40 0.75 4720×1480×1280 4800
XM/AZ 60/900U 60 47 0.88 5150×1480×1280 5100
XM/AZ 70/900U 70 63 1.19 6120×1480×1280 5700
XM/AZ 60/1000U 60 38 1000×1000×60 30 0.9 0.5~1.6 5450×1560×1360 2.2 7080
XM/AZ 80/1000U 80 50 1.19 6180×1560×1360 7830
XM/AZ 100/1000U 100 62 1.48 6910×1560×1360 8680
XM/AZ 120/1000U 120 75 1.8 7710×1560×1360 9250
XM/AZ 125/1250U 120 46 1250×1250×65 32 1.9 0.5~1.6 6500×1770×1620 4 10900
XM/AZ 150/1250U 150 58 2.41 7290×1770×1620 11800
XM/AZ 180/1250U 180 69 2.88 8020×1770×1620 12700
XM/AZ 200/1250U 200 77 3.22 8550×1770×1620 13300
XM/AZ 220/1250U 220 84 3.51 9010×1770×1620 13900
XM/AZ 250/1250U 250 95 3.98 9740×1770×1620 14800
XM/AZ 300/1500U 300 77 1500×1500×70 32 4.76 0.5~1.6 10040×2400×1800 5.5 26500
XM/AZ 320/1500U 320 83 5.14 10460×2400×1800 27190
XM/AZ 340/1500U 340 88 5.45 10820×2400×1800 27880
XM/AZ 350/1500U 350 90 5.58 10960×2400×1800 28230
XM/AZ 380/1500U 380 98 6.08 11530×2400×1800 29260
XM/AZ 400/1500U 400 103 6.39 11880×2400×1800 29950
XM/AZ 450/1500U 450 116 7.21 12810×2400×1800 31670
XM/AZ 500/1500U 500 128 7.96 13660×2400×1800 33390
XM/AZ 560/2000U 560 80 2000×2000×83 40 11.16 0.5~1.6 10600×2900×2450 11 56500
XM/AZ 600/2000U 600 86 12.01 12110×2900×2450 58000
XM/AZ 630/2000U 630 90 12.58 12440×2900×2450 59000
XM/AZ 670/2000U 670 96 13.43 12950×2900×2450 60500
XM/AZ 710/2000U 710 101 14.13 13370×2900×2450 62000
XM/AZ 750/2000U 750 107 14.98 13870×2900×2450 63300
XM/AZ 800/2000U 800 114 15.97 14460×2900×2450 65200
XM/AZ 850/2000U 850 121 16.96 15050×2900×2450 67000
XM/AZ 900/2000U 900 128 17.95 15640×2900×2450 69000
XM/AZ 950/2000U 950 135 18.94 16220×2900×2450 70600
XM/AZ 1000/2000U 1000 142 19.92 16810×2900×2450 72300
XM/AZ 1060/2000U 1060 151 21.2 17570×2900×2450 74500
XM/AZ 1120/2000U 1120 159 22.33 18240×2900×2450 76800
XM/AZ 1180/2000U 1180 168 23.61 19000×2900×2450 79000
